Trench Drains, Slot Drains, Deck Drains - A Comprehensive Guide

Among the plethora of options available, trench drains (aka Channel Drains) have emerged as a pivotal solution for controlling and directing water flow in various environments. This comprehensive guide delves into the essence of trench drains and their integral role in sitework construction, spotlighting the versatility they offer through custom deck drain grates, the durability of bronze and cast iron grates, and the precision of laser elevations in installation.

The Significance of Trench Drains in Modern Construction

Trench drains, known for their linear design, offer an effective and efficient method for collecting surface water and diverting it away from critical areas. Their application spans across residential, commercial, and industrial projects, highlighting their adaptability to different scales and requirements. By integrating trench drains into a sitework construction plan, developers can significantly mitigate water-related issues, preventing erosion, flooding, and water damage to structures.

Diverse Applications and Custom Solutions

Residential Trench Drains

In residential settings, trench drains are crucial for areas prone to accumulation of surface water. Their presence in driveways, patios, and pool areas ensures that homeowners can enjoy their outdoor spaces without the worry of water pooling or flooding. SMC Contracting generally uses the term 'Trench Drain' for 6 inch Class B driveway Drains

Slot Drain Systems

Slot drains represent a sleek and modern alternative to traditional trench drains, featuring a narrow opening that is nearly invisible to the eye. This system is ideal for areas where aesthetics are as important as functionality, such as in landscaped areas or alongside pools or loggias.

Deck Drains and Custom Deck Drain Grates

Deck drains play a pivotal role in managing water on wooden, composite, or concrete decks, preventing water accumulation and potential damage. The customization of deck drain grates, including options in bronze grates and cast iron grates, not only enhances the drainage efficiency but also adds a decorative touch, blending seamlessly with the deck design. SMC uses the term Deck Drain for drains under 4" in width.

The Durability of Bronze, Stainless and Cast Iron Grates

Choosing the right material for drain grates is essential for ensuring the longevity and effectiveness of the drainage system. Bronze grates offer a luxurious and durable option, naturally resistant to corrosion, making them suitable for both residential and commercial applications. On the other hand, cast iron grates are known for their strength and durability, capable of withstanding heavy loads, which makes them an excellent choice for industrial environments.

Precision Installation with Laser Elevations

The installation of trench drains requires precise planning and execution to guarantee their effectiveness. The use of laser elevations in the installation process ensures that the drains are positioned at the correct angles and elevations, optimizing water flow and drainage efficiency. This technology allows for accurate installations, even in complex landscapes or terrains.


What are trench drains and how do they work?

Trench drains are long, narrow channels with grates on top, installed so the top of the grate is level with the ground to collect and redirect surface water. Water flows through the grate, down the channel, and exits to a designated outlet like a storm drain or catch basin. They help prevent flooding, erosion, and water damage around your home.

Where can I use trench drains in my home?

Trench drains used on hard surfaces around your home, including:

  • Driveways and walkways: Prevent pooling water and protect pavement from damage.
  • Patios and decks: Drain rainwater away from outdoor living areas.
  • Basements and crawl spaces: Channel groundwater and prevent flooding.
  • Garages: Direct water away from vehicles and tools.
  • Pools and spas: Collect overflow and direct it to proper drainage.
  • Landscapes: Control water flow around gardens, pathways, and sloped areas.

What are the benefits of using trench drains?

Effective directed drainage is the main benefit. It works well and is an easy way to direct flowing surface water to where you want it to go without too much complicated sloping.

Flood prevention: Protect your home and property from flooding, especially in low-lying areas.

Erosion control: Reduce soil erosion caused by water runoff by redirecting water away from erosion prone areas.

Improved safety: Eliminate slippery surfaces and standing water, reducing slip and fall hazards.

Versatility: Suitable for various applications around your home, both indoors and outdoors.

What types of trench drains are available?

Trench drains come in various materials (plastic, concrete, polymer), grate styles (slotted, heel-proof), and channel depths/widths to suit your specific needs and aesthetic preferences. In the Palm Beach area we use the following terms

  • Trench Drains - All channel drains over 4 inches wide
  • Deck Drains - Channel drains 4 inch and under
  • Slot Drains (AKA Brick Slot Drains) - minimal appearance, almost a hidden drain, used in foot traffic areas and pool areas

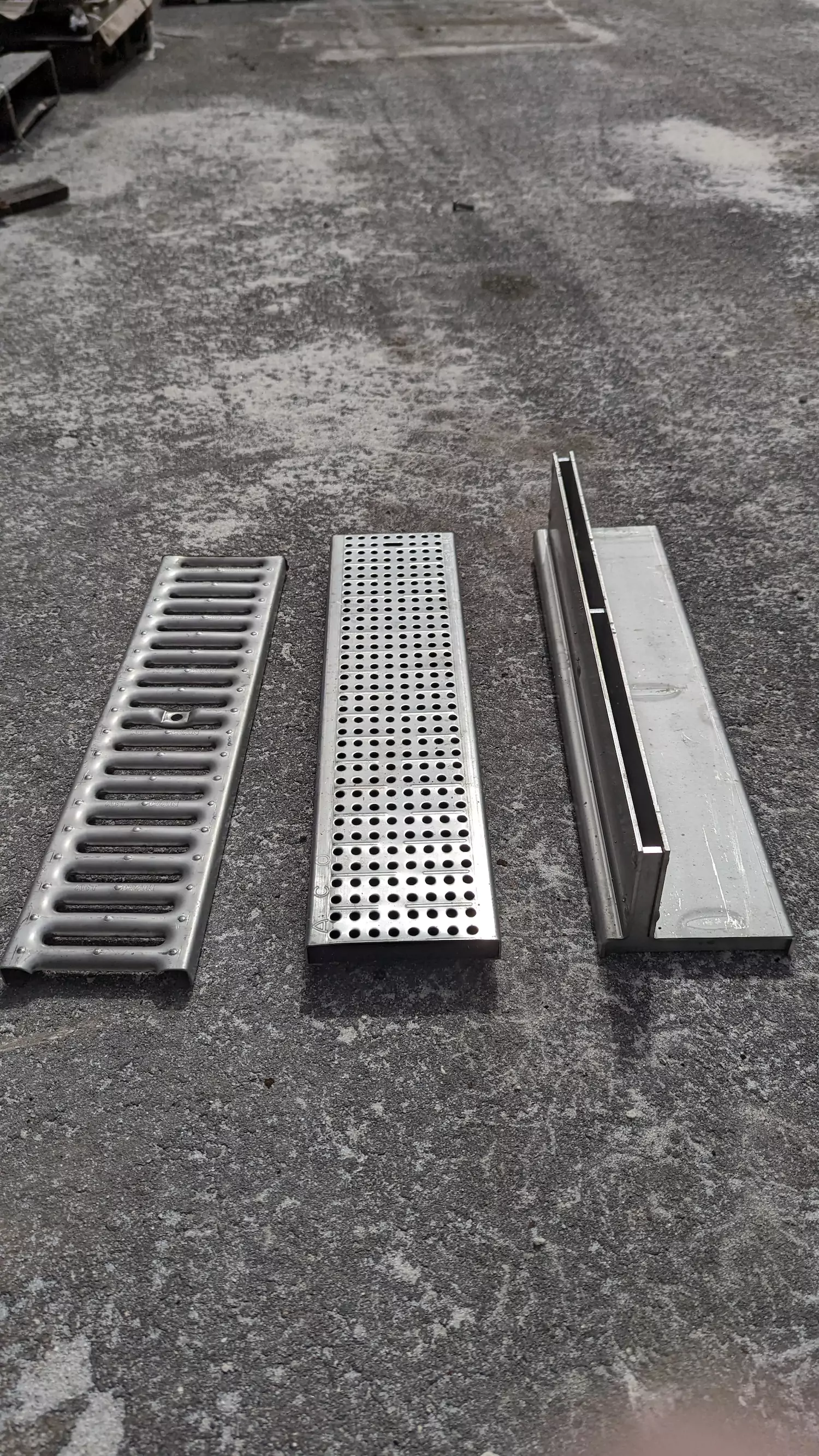

regular 6 inch stainless grate, a heel safe grate, and a slot drain

3 different stainless drains. A regular 6 inch stainless grate, a heel safe stainless grate and a stainless slot drain

a selection of deck drains ranging from 2-4 inch

A selection of deck drains ranging from 2 inch to 4

Is there any type of weight rating for trench drains?

Yes there is a class rating system for trench drains ratings rang from A-F.

  • Class A - Light Duty. Load capacity up to 2500 lbs, for pedestrian and bike paths
  • Class B - Medium Duty. Load capacity up to 5000 lbs, Occasional car traffic
  • Class C - Heavy Duty. Load capacity to 10000 lbs, Commercial trucks
  • Class D & E - Extra Heavy Duty. 40k & 60k lbs. Airports, fire stations, docks
  • Class F - Custom. Above 60k

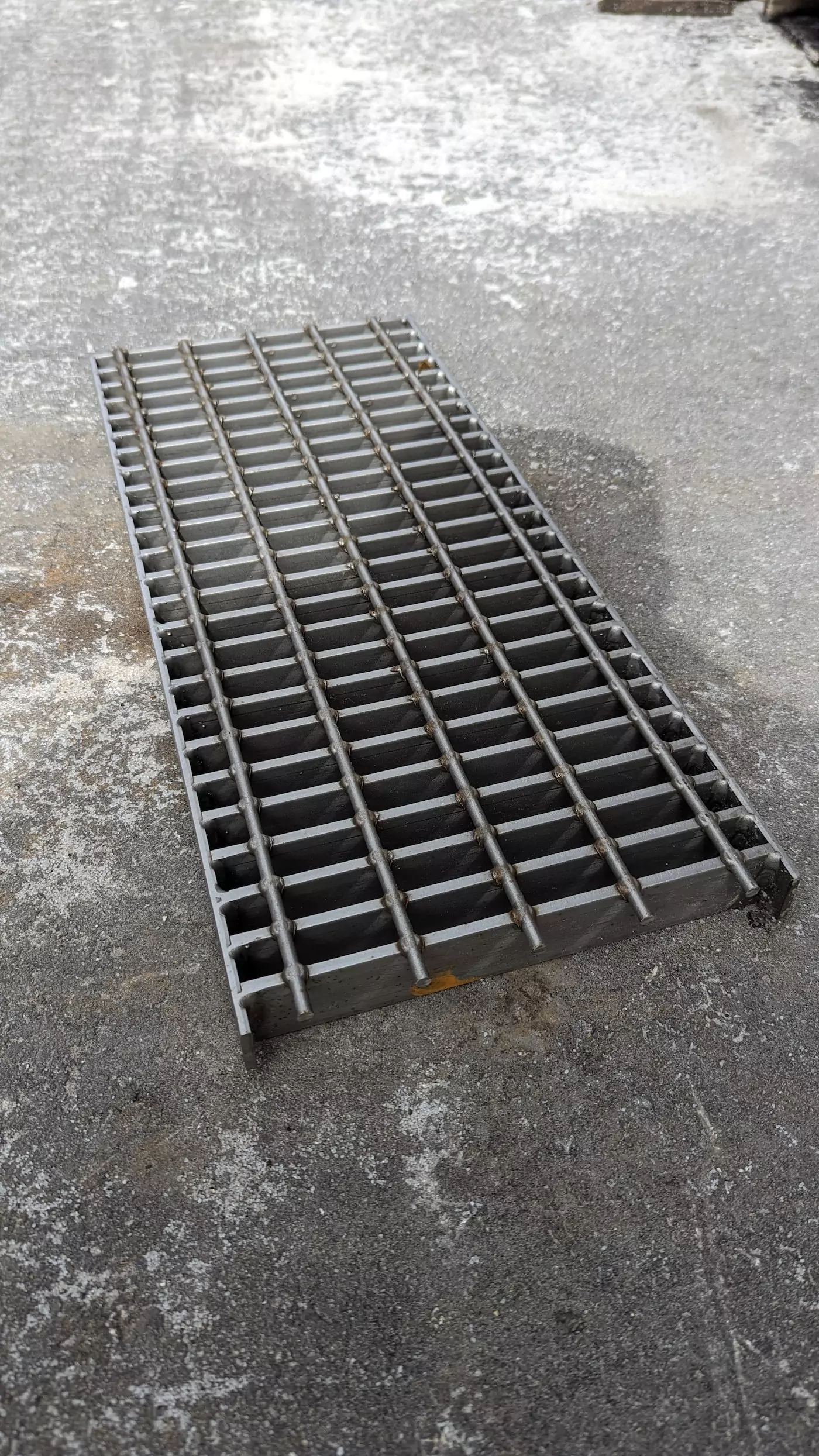

an 8 inch class A trench drain

Class C stainless trench drain grate

Do I need professional help to install a trench drain?

While simple trench drain systems can be DIY projects, complex installations involving connecting to existing drainage or working around utilities might require professional assistance for proper planning and execution. A trench drain put in at the wrong elevation will either cause flooding or drainage will not be effective

Taking in to account the stormwater drainage plan from your engineer is a more complex question. The engineer will plan out all drainage elements to work together.

What is the normal installation method for a trench drain

The most durable way to install a trench drain is called "Cast in Place". The elevation of the top of the trench drain is predetermined and the drain set in place, a bed of concrete is fed under the drain and filled above the lowest point of the drain. This ensures no movement.

stub ups ready for the trench drain

The driveway trench drain stub ups ready for the trench drain install.

The drain is put in place above the stub ups, and the concrete is backfilled underneath the drain

After the trench drain is installed above the drainage stub ups, concrete is backfilled and left to set

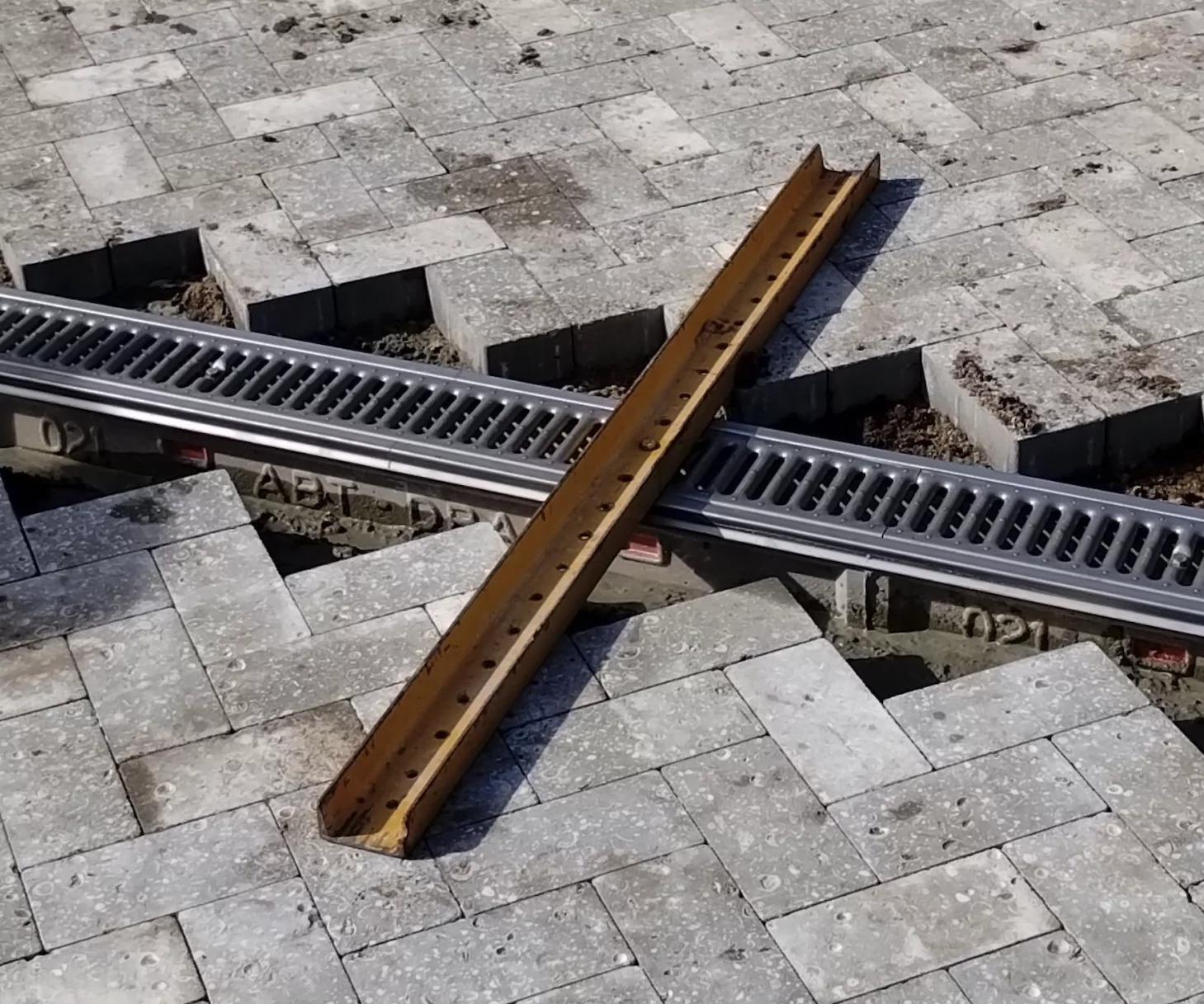

6 inch trench drain installation with rails for leveling

Installing a 6 inch Trench Drain. The rails makes sure that it is installed level with the surface. After the underling concrete is dry, the rest of the pavers are installed right up to the trench drain.

What are the maintenance requirements for trench drains?

Regularly remove debris from the grate to prevent clogging and ensure proper water flow. Depending on the type of drain, you might need to occasionally clean the channel and catch basin.

Are trench drains expensive?

The cost of trench drains varies depending on size, material, and complexity of installation. Smaller, DIY-friendly systems are more affordable, while larger, custom-designed options might have a higher price tag.

Are trench drains visually appealing?

Modern trench drains offer various grate styles and colors to blend seamlessly with your landscape or architectural design. You can also opt for discreet channel covers for a minimalist look.

Are there any regulations or permits required for installing trench drains?

Local building codes might have specific regulations regarding trench drain installation. Checking with your local authorities before installing is essential.
In the Town of Palm Beach there is no specific regulation for the trench drain, however for proper drainage you need the elevation engineered. Over the years SMC has found the most durable products for each solution.

What are my material options for the grates?

The grates are typically Ductile Iron or Stainless Steel. However here is a comprehensive list of trench drain grate materails.

  • Ductile Iron (cast iron) painted or raw
  • Galvanized Steel
  • Stainless Steel
  • Fiberglass
  • Bronze
  • Aluminum

What types of grate designs can I have?

Google is your friend when it comes to trench drain grates. We have purchased trench drains from ABT and for slot drains ACO in the past.

trench drain grate designs from ABT

Trench Drain Grate Designs from the ABT catalog
