Custom Concrete Drain & Sewer Structures

SMC can handle permitting and tie in to city/town utilities and have engineered product suppliers that can create drawings for permits as well as make the products.

Many of these MUST be custom made because of the elevations of openings that enter the structure, these structures are also reinforced to city/town code, and made by an approved manufacturer.

The elevations mentioned on the shop drawings are calculated directly from the plans.

Engineered concrete tie in structures

custom concrete drain structures

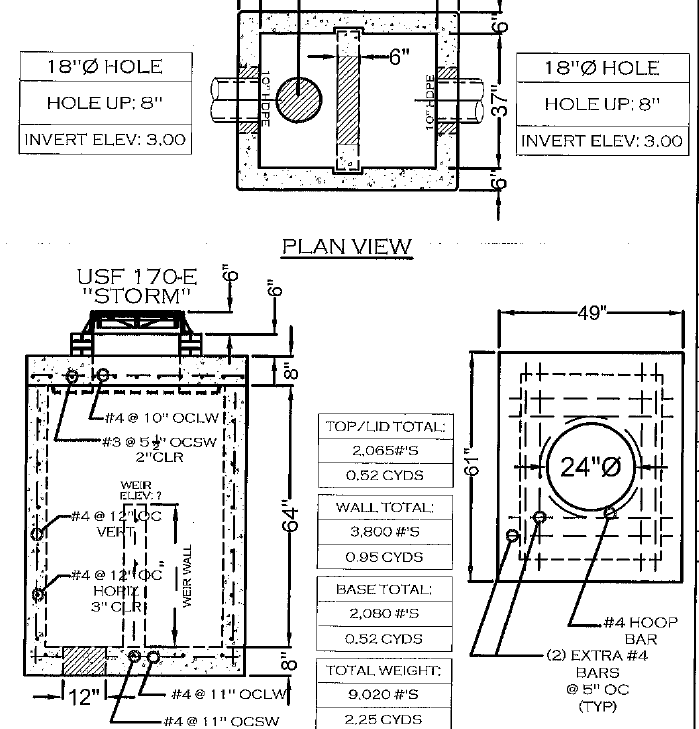

Image above shows engineers drawing of a custom made concrete storm drain chamber. Pipe openings are set to match appropriate grades for pipe intersections. (note invert elevation)

civil plan showing tie in to existing storm drain in street

Image above shows civil drawings requiring a new tie in to storm drain in street.
